8200 Lumens 3LCD Laser Projector with 16W Speaker and 360° Projection for 3D Hologram Immersive Display

Model Number : MX-VL820U

Brand Name : SMX

Place of Origin : Guangdong, China

MOQ : 1

Price : $2,380-2,880

ANSI Lumens : 8200

Resolution : WUXGA (1920 x 1200)

Contrast Ratio : 5000000:1

Light Source : NICHIA LASER

Lamp Life : 20000-30000hrs

Throw Ratio : 1.08(wide)-1.76(tele)

Zoom Ratio : 1.6

Screen Size : 30-300 inch

Lens Shift : V:＋45%～0%、H:±21%

Speaker Power : 16W*1

Power Consumption : 425W (Max)

Operating Temperature : 0°C~50°C

Operating Humidity : 20-85%

Weight : 13KG

Product Dimensions : 405 (W)*358(D)*137(H) mm

Contact Now

Product Description

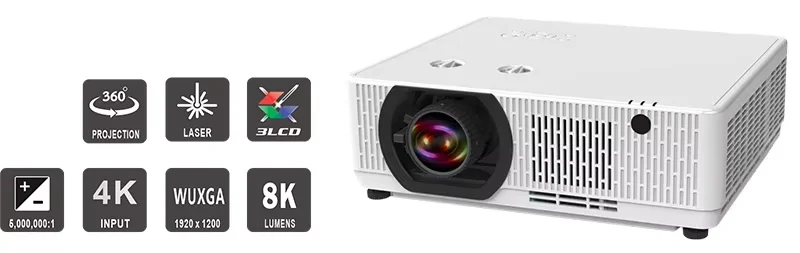

8200 Lumens 3LCD Laser Projector with 16W Speaker and 360° Projection for 3D Hologram Immersive Display

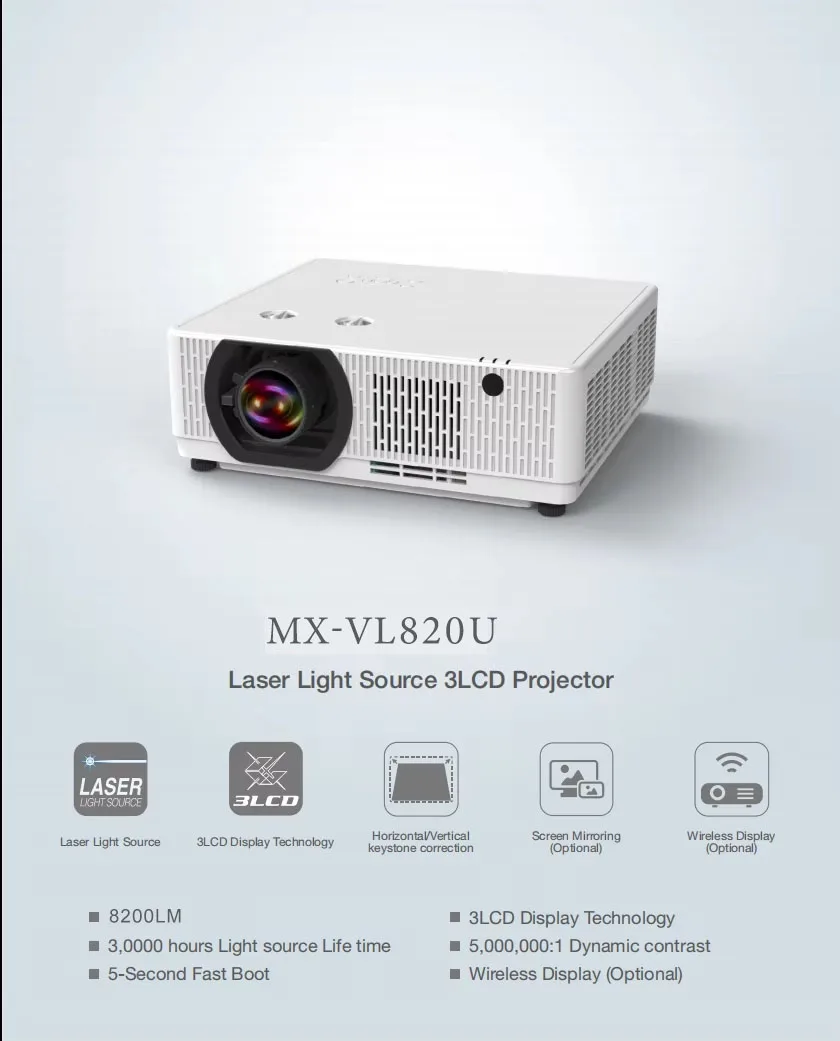

MX-VL820U 3LCD WUXGA (1920 x 1200) Laser Projector

8200lm brightness output, lens shift, 20,000hrs life time of laser light source can provide professional installation in large rooms, auditoriums and museums and reduce maintenance fee.

Key Features
* 8,200 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.

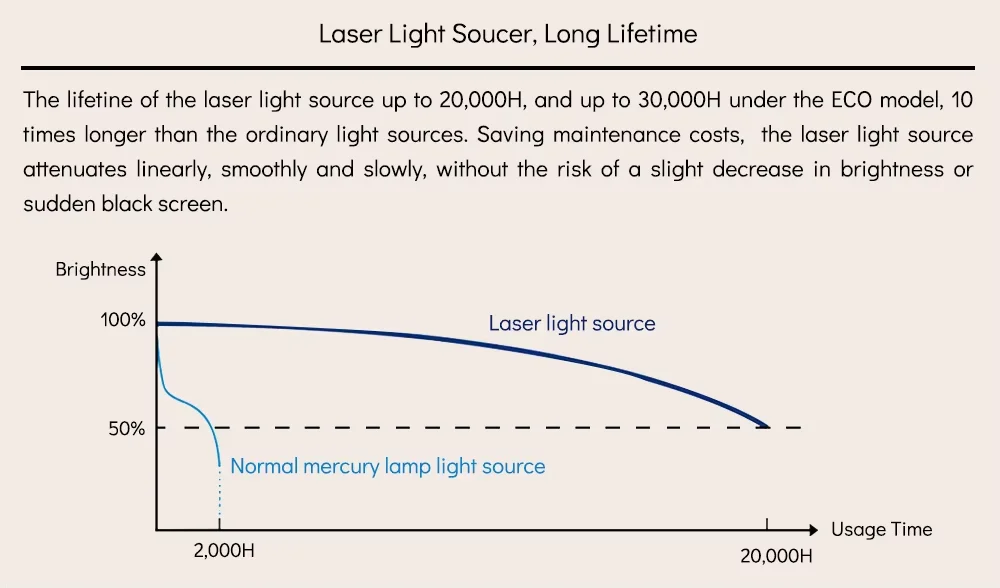

* High brightness and contrast with long life 20,000 hour Laser + Phosphor Light Source.
* 10-bit color processing, for superior color reproduction.
* Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
* Supports analog and digital video input in all color standards up-to 1080p.
* Convenient mid-range (1.6:1) manual zoom and focus lens.
* Horizontal, Vertical & Corner Keystone Correction.
* Pincushion/Barrel & 6 point Geometric Correction.
* Horizontal & Vertical Manual Lens Shift. Wired network control.
* Compatible with Crestron RoomViewTM & AMX Device Discovery Technology.
* Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.

Optical Zoom, Lens Shift, More Convenient Installation and Debugging

The projector has a lens shift function that allows for non-destructive panning of the image through the menu, allowing the user to easily The projector has a lens shift function that allows for non-destructive panning of the image through the menu, allowing the user to easily adjust the projected image position. The maximum adjustment range is 60% (upward) in the vertical direction and ±29% in the horizontal direction. The maximum vertical adjustment range is 60% (upward) and the maximum horizontal adjustment range is ±29%.

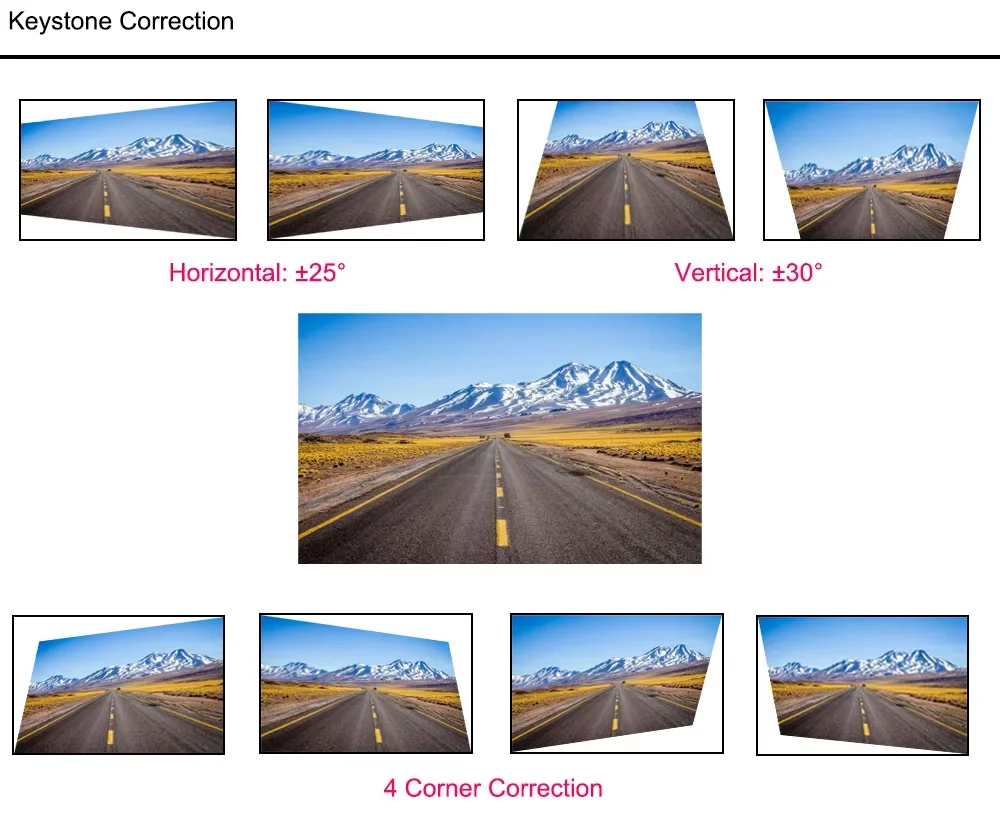

Hex Correction & Multi-Point Correction

Horizontal & vertical trapezoidal correction, as well as hexagonal correction, pillow/barrel distortion correction, and
multi-point trapezoidal correction. The easy adjustment operation ensures that the user obtains the best imaging effect on all kinds of irregular projection surfaces.

Outstanding Performance 16w Speakers to Make Meetings Sound Good

The body is equipped with an outstanding 16 W built-in speaker, making the sound louder and meetings more and the meeting is more colorful.

Specification

Key parts	Model No.	MX-VL820U
		Brightness(Lumen)	8200
		Resolution	WUXGA
		Light source	NICHIA LASER
Overall Spec	Display Panel	3x0.64" with MLA
		Display Technology	Liquid Crystal Display
		Native Resolution	WUXGA (1920 x 1200)
Light source Life time	Full Normal/Normal mode	20000hrs
		ECO1 mode	30000hrs
		ECO2 mode	30000hrs
Projection Lens	F	1.58-2.02
		f	15.3mm-24.6mm
		Zoom/Focus	Manual
		Throw Ratio	1.08 (wide)-1.76 (tele)
		Zoom Ratio	1.6
		Screen size	30-300 inch
		Lens Shift	V:＋45%～0%、H:±21%
CR	Contrast Ratio (FOFO)	5000000:1
Noise	Noise(dB) *1	39dB(Normal) 31dB(ECO1) 29dB(ECO2)
Uniformity	Uniformity(Actual Min) -JISX6911	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9
Terminal(I/O port)
Input	VGA	*1
		HDMI 1.4B(IN)	*2
		USB-A	*1
		USB-B	*1 (Display)
		RJ45	*1 (Display)
		HD BaseT	*1(Optional)
		Audio in (mini jack,3.5mm)	*1
Output	VGA	*1
Output		Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
		RJ45	*1 (Control)
		USB-B	*1 (For upgrade)
Audio	Speaker	16W*1
Dust filter		W/Filter
Filter Life time		8000h
Power Consumption	Power Requeirements	100~240V@ 50/60Hz
		Power Consumption (Normal) (Max)	425
		Power Consumption（ECO1) (Max)	285
		Power Consumption（ECO2) (Max)	235
		ECO Standby Mode PowerConsumption	<0.5W
Temp.&Humidity	Operating Temp.	0m≤Altitude≤1700m, Ambient 0°C~50°C
			1700m＜Altitude＜3000m, Ambient 0°C~40°C
		Operating humidity.	20-85%
		Store Temp.	-10 to 50°C
		High altitude	0~3000m
Keystone	Keystone Correction (Lens@center)	V: ±30° H：±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese,Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech,Kazak,Vietnamese,Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
		LAN Control--AMX Discovery	Yes
		LAN Control--PJ Link	Yes
Scanning Frequency	H-Synch Range	15~100KHz
Scanning Frequency		V-Synch Range	24~85Hz
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Display Resolution		Video Signal Input	480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting	Auto Setup	INPUT SEARCH,AUTO PC,Auto Keystone
		Blank	Yes
		Suspend	Yes(5 minutes no signal as default)
		Picture mode	Dynamic，Standard，Cinema， Colorboard，sim-DICOM,Blackboard(Green)
		Cooling time	0s、normal、30s
		Auto Ceiling	Yes
		D-Zoom	1~33
Others	360° projection	Yes
Others		Edge Blending	Yes
Dimension&Weight	Product Size (mm)	405 (W)358(D)137(H)
		Net. Weight (KG)	~7.9KG
		Packaging Size(mm)	510 (W)498(D)260(H)
		Gross. Weight (KG)	~10.4KG
Accessory	Manual Languages	Chinese,English
Accessory		Standard Accessaries	Power cord, HDMI cable,Remote control

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

SHENZHEN SMX DISPLAY TECHNOLOGY CO., LIMITED is a company dedicated to projector design and manufacturing, product line including
3LCD,Short Throw LCD, DLP, Laser and Short Throw Laser Projector. We provide a wide range of services including OEM, ODM and customized requirements for customers. Our team have many years of R & D experience in this industry，extensive production and quality management experience, to provide all customers with reliable product quality and service.
As a Projector Manufacturer, we believe in the power of progress and continual progress is key to success. We are committed to product innovation and always pursue cutting-edge technology to make products close to market demand and user experience.
We also provide the full solution for Immersive Projection and 3D Mapping Projection including the edge blending technology.
We work tirelessly to create the suitable projector that to help our clients whatever anywhere they come from. Our projectors build in 26 languages to help customer for easy use.
Our team-first mindset ensures that every member of our company is dedicated to creating a culture of innovation and progress. We are passionate about what we do and treat every customer with a sincere attitude.
